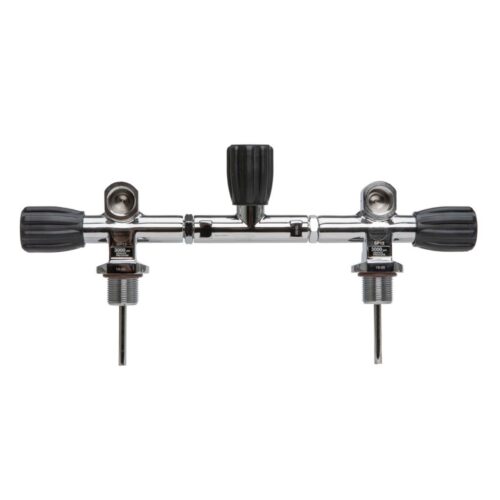

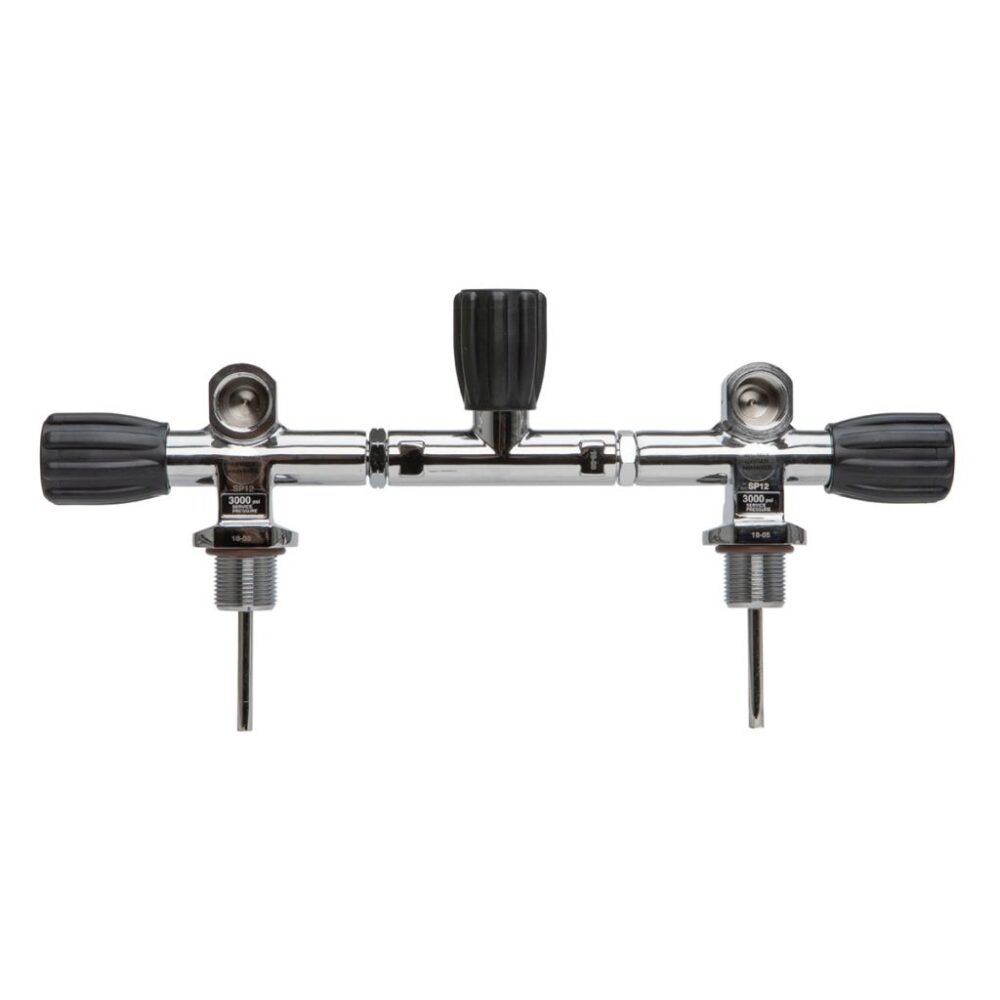

Thermo Manifold-DIN 3442 psi

DIN - Dedicated 300 bar

Center-to-center distance: 215 mm (8.46 in) +/- 5 mm (0.2 in)

3/4”-14 NPSM standard inlet threads

High gas flow for optimum regulator performance

On/Off seat built from high strength brass with nylon seat and teflon plated for years of smooth operation

One-piece safety assembly protected within the body of the valve

Traditional copper crush washer sealed bonnet

Modular access plugs (R/L) included for use as single valves

Screw-in dip tube with hex tighten feature

Meets the requirements of CGA V9-2009 standards

Available in 2 service pressures

Manifold Assembly Instructions

Assembling Twin Cylinders

p/n
VMT300-30A (3000 psi)
VMT300-34A (3442 psi)
